Description

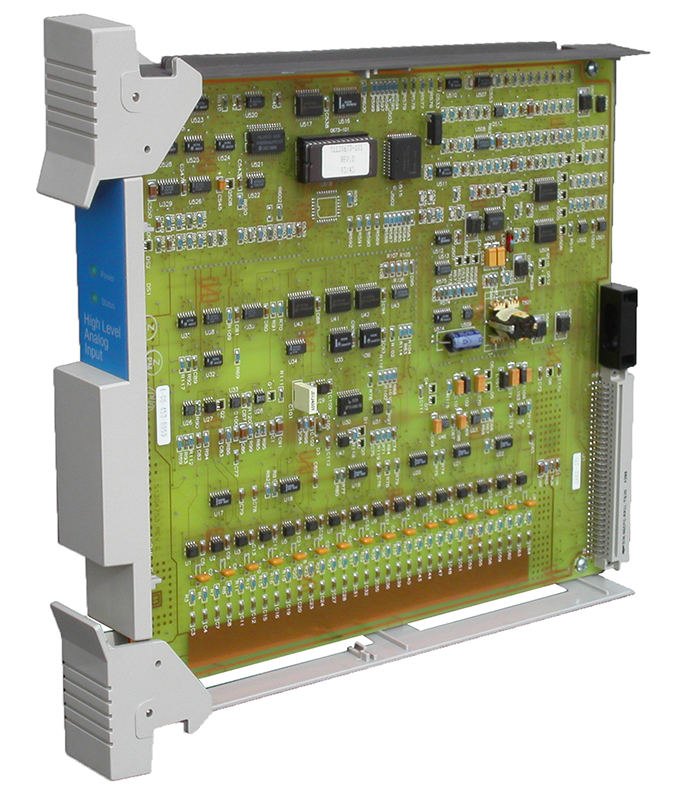

High Level Analog Input Processor MU-PAIH03

CE-compliant, not conformally coated

FTAs:

MU.TAIH02 51304453-100.HLAI~STI.not.CE.not.redundant.16.inputs	MC.TAIH02 51304453-150.HLAI~STI.not.CE.coated.not.redundant.16.inputs
MU.TAIH03 51309136-125.HLAI.CE.not.redundant.16.inputs	MC.TAIH03 51309136-175.HLAI.CE.coated.not.redundant.16.inputs
MU.TAIH12 51304337-100.HLAI~STI.not.CE.redundant.16.inputs	MC.TAIH12 51304337-150.HLAI~STI.not.CE.coated.redundant.16.inputs
MU.TAIH13 51309138-125.HLAI.CE.redundant.16.inputs	MC.TAIH13 51309138-175.HLAI.CE.coated.redundant.16.inputs
MU.TAIH22 51204170-100~80366195.100.HLAI~STI.not.CE. redundant.enhanced.power.16.inputs	MC.TAIH22 51204170.150~80366195.150.HLAI~STI.not.CE.coated. redundant.enhanced.power.16.inputs
MU.TAIH23 51204170.125~80366195.125.HLAI.CE. redundant.enhanced.power.16.inputs	MC.TAIH23 51204170.175~80366195.175.HLAI.CE.coated. redundant.enhanced.power.16.inputs
MU.TAIH52 51304337-200.HLAI~STI.not.CE.redundant.16.inputs	MC.TAIH52 51304337-250.HLAI~STI.not.CE.coated.redundant.16.inputs
MU.TAIH53 51309138-225.HLAI.CE.redundant.screw.16.inputs	MC.TAIH53 51309138-275.HLAI.CE.redundant.coated.screw.16.inputs
MU.TAIH62 51204168.100~80366192.100.HLAI~STI.not.CE. redundant.enhanced.power.screw.16.inputs	MC.TAIH62 51204168.150~80366192.150.HLAI~STI.not.CE. redundant.enhanced.power.screw.16.inputs
MU.GAIH13 51304718-125.GI~IS.CE.redundant.16.inputs.4041B	MC.GAIH13 51304718-175.GI~IS.CE.coated.redundant.16.inputs.4041B
MU.GAIH83 51304718-325.GI~IS.CE.redundant.16.inputs.4041B	MC.GAIH83 51304718-375.GI~IS.CE.coated.redundant.16.inputs.4041B
MU.GAIH14 51304730.125.GI~IS.HLAI~STI.CE.redundant. 16.inputs.Hi.V.Out.4041P	MC.GAIH14 51304730.175.GI~IS.HLAI~STI.CE.coated.redundant. 16.inputs.Hi.V.Out.4041P
MU.GAIH84 51304730.325.GI~IS.HLAI~STI.CE.redundant.crimp. 16.inputs.Hi.V.Out.4041P	MC.GAIH84 51304730.375.GI~IS.HLAI~STI.CE.coated.redundant.crimp. 16.inputs.Hi.V.Out.4041P
MU.GAIH22 51304748.125.GI~IS.HLAI~STI.CE.redundant. 16.inputs.Aux.Current.Out.4041B	MC.GAIH22 51304748.175.GI~IS.HLAI~STI.CE.coated.redundant. 16.inputs.Aux.Current.Out.4041B
MU.GAIH92 51304748.325.GI~IS.HLAI~STI.CE.redundant.crimp. 16.inputs.Aux.Current.Out.4041B	MC.GAIH92 51304748.375.GI~IS.HLAI~STI.CE.coated.redundant.crimp. 16.inputs.Aux.Current.Out.4041B

Input Channels: 16 analog input channels

Input Range:
0.to.5V


1.to.5V


0.4.to.2V


4-20.mA.thru.250.ohms

Input Scan Rate:
4.samples.per.second.per.channel
